1. DESIGN CONCEPT
- Evolved design, functionality and performance over its predecessor
- Wind tunnel-tested and refined aerodynamics and ventilation performance
- Compact, aerodynamic shell shape with integrated spoiler
- SHOEI's lightest SNELL-approved full-face helmet model
- All-new shield and base plate system for optimized visibility and performance
- Noise-reduction technology reduces unwanted wind and road noise



2. AERODYNAMICS
- Developed and refined in SHOEI's state-of-the-art wind tunnel facility
- Compact, aerodynamic shell shape with integrated spoiler
- Strategically-shaped air intake and exhaust vents help streamline the overall profile
- Boasts impressive improvements in aerodynamic performance and reduces the forces placed on a rider's head
- Lift reduction (upward lift forces): -6%*
- Drag reduction (forward drag forces): -4%*

3. ADVANCED NOISE REDUCTION
- Optimal shell aerodynamics reduce wind noise around the helmet
- Vortex Generators on the sides of the shield reduce wind turbulence
- All-new, airtight window beading provides wind/waterproof seal
- New, voluminous cheek pads and removable ear pads further restrain wind noise inside the helmet
- The RF-1400 provides an incredibly quiet riding experience without blocking the road's informative sounds



4. VENTILATION PERFORMANCE
- Wind tunnel-optimized to provide the perfect balance between airflow and silence
- Relocated center/forehead vent is equipped with an additional air intake hole for greater airflow into the helmet
- Upper air intake holes have been enlarged for optimal performance
- New, enlarged exhaust outlet vent for improved hot-air expulsion
- Large 3-position lower vent shutter for ease of use with riding gloves
- Features six (6) air intake vents and four (4) exhaust outlets

5. CWR-F2 SHIELD
- Protects from 99% of the sun's damaging UV rays
- 3D injection-molding ensures distortion-free view throughout the entire field of vision
- 2D "flat" outside surface combined with 3D technology inside offers an aggressive look with optimized visibility
- Vortex Generators improve shield aerodynamics and reduce wind noise
- All-new, conveniently located center locking mechanism evenly distributes shield forces across both base plates
- PINLOCK EVO fog-resistant system is 10% larger for improved lateral vision



6. CWR-F2 BASE PLATE SYSTEM
- Completely redesigned to facilitate quicker, smoother shield changes
- New shield adjuster mechanism provides easier, more precise tuning
- Redesigned base plate gear has all-new "first position" shield opening feature for advanced venting and defogging
- SHOEI's patented spring-loaded technology ensures a wind and waterproof seal
- All-new airtight window beading reduces wind and water intrusionz

7. MULTI-PLY MATRIX AIM+ SHELL
- Proprietary technology integrates a multi-ply matrix specifically designed to meet both SNELL M2020 and DOT standards
- Hand-laid interwoven layers of fiberglass with lightweight organic and high-performance fibers
- Shell-integrated spoiler with consistent shell thickness guarantees proper strength and weight
- SHOEI's strongest, lightest, most elastic shell provides optimal impact absorption



8. DUAL-LAYER/MULTI-DENSITY EPS LINER
- Provides enhanced impact absorption by utilizing varying densities of foam
- Allows cooling air to travel unrestricted through tunnels created in the EPS
- Precise placement of multi-density EPS material yields a more compact, lightweight design

9. EMERGENCY QUICK RELEASE SYSTEM (E.Q.R.S.)
- Allows emergency medical personnel to easily and safely remove the cheek pads from an injured rider's helmet
- Helmet can be gently removed from an injured rider's head with minimal load placed on his/her neck



10. 3D MAX-DRY INTERIOR SYSTEM II
- Fully removable, washable, replaceable and adjustable
- Exclusive Max-Dry material absorbs and dissipates sweat 2X faster than traditional nylon interiors
- Soft yet durable lower cheek pad fabric for a plush fit and feel
- Three-dimensionally shaped to match the contours of a rider's head
- Multi-layer cheek pads for improved comfort and helmet stabilization
- Cheek pads feature more volume for greater comfort and reduced wind noise
- Optional interior components available in different sizes for a customizable fit

Sizing
Wrap a tape measure horizontally around your forehead. Select the helmet that is the closest fit to that size. A helmet should fit snug on your head. If it moves while wearing, it is too large. If it is painful to wear, it is too small.

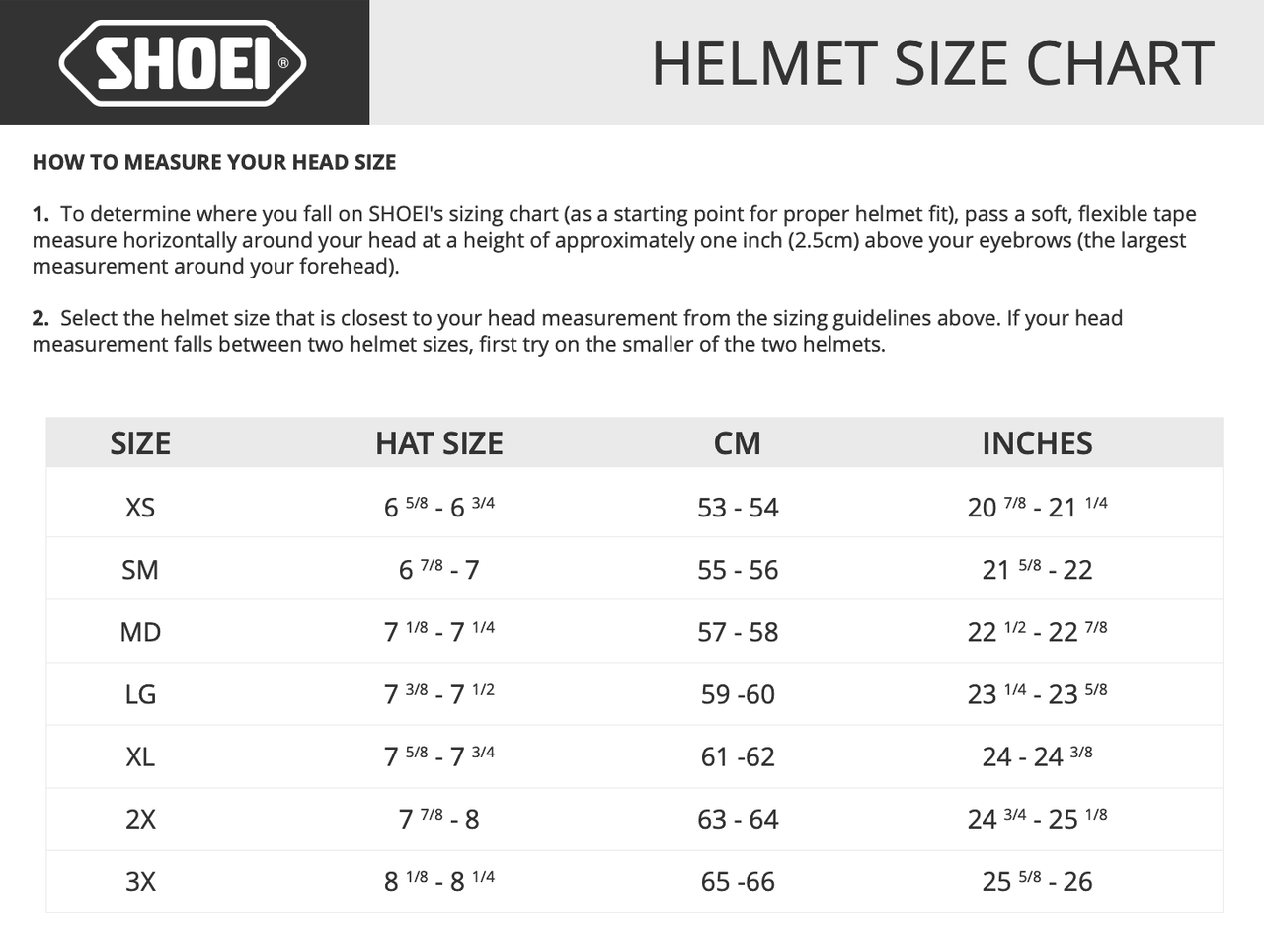

Size Chart |
|||
Size |
CM: |
Hat Size |
Inches |
XS | 53-54 | 6 5/8 - 6 3/4 | 20 7/8 - 21 1/4 |
S |
55-56 | 6 7/8 - 7 | 21 5/8 - 22 |
M |
57-58 | 7 1/8 - 7 1/4 | 22 3/8 - 22 3/4 |
L |
59-60 | 7 3/8 - 7 1/2 | 23 1/4 - 23 5/8 |
XL |
61-62 | 7 5/8 - 7 3/4 | 24 - 24 3/8 |
2XL | 63-64 | 7 7/8 - 8 | 24 3/4 - 25 1/4 |
